Discover Haode PCBA Solutions
Expert Manufacturing for Your PCBA Needs
We specialize in high-quality PCB assembly with precision and reliability.
Forging the Future of Electronics
Haode PCBA operates at the intersection of innovation and precision. Our automated facilities utilize AI-driven quality control systems to ensure every connection meets rigorous aerospace standards. We don't just assemble boards; we architect reliability into every layer of your product, from prototype to mass production.
PCB Fabrication
We manufacture printed circuit boards (PCBs) with the highest reliability for middle and high-end applications, such as aerospace, defense, automotive, medical, and many more.
PCB Assembly
We provide SMT and THT PCB assembly. Highly precise placement and soldering all follow the IPC-A-610 standard. We also source components and provide post-assembly services.
EMS Solutions
For over 14 years, we have been an EMS manufacturer for PCB assemblies and PCBA box builds that are completely assembled to be end-electronic products.
| Items | Specification |
|---|---|
| Quality Grade | Standard IPC 2 |
| MOQ | 1pc |
| Material | FR-1, FR-2, FR-4, FR4 Halogen Free, CEM-1, CEM-3, Hight TG, Aluminum |
| Available Layers | 1~50 layers |
| Board Thickness (mm) | 0.2mm~7mm |
| Board Thickness Tolerance | ±0.1mm – ±10% |
| Board Side | Min 6*6mm | Max 500*500mm |
| Board Size Tolerance | ±0.1mm – ±0.3mm |
| Copper Thickness | 0.5-4.0oz |
| Copper Thickness Tolerance | +0μm +20μm |
| Copper Weight | 0.5oz – 6.0oz |
| Inner Layer Copper Weight | 0.5oz – 2.0oz |
| Min. Drilled Hole Size | 0.25mm |
| Min. Line Width | 0.075mm (3mil) |
| Min. Line Spacing | 0.075mm (3mil) |
| Surface Treatment | Immersion gold Immersion, HALS/HALS lead free, Chemical tin, Chemical Gold |
| Surface/Hole Plating Thickness | 20μm – 30μm |
| Hole Tolerance | PTH: ±0.075, NTPH: ±0.05 |
| Solder Mask Color | Green/Black/White/Red/Blue/Yellow |
| Solder Mask Sides | As per the file |
| Min Tracing/Spacing | 3mil/3mil |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Blue, Black, Red, Yellow |
| Min Annular Ring | 3mil |
| Min Width of Cutout (NPTH) | 0.8mm |
| NPTH Hole Size Tolerance | ±.002″ (±0.05mm) |
| SM Tolerance (LPI) | .003″ (0.075mm) |
| Aspect Ratio | 1.10 (Hole size: Board thickness) |
| PCB Testing | 10V – 250V, flying probe or testing fixture |
| Impedance Tolerance | ±5% – ±10% |
| SMD Pitch | 0.2mm (8mil) |
| BGA Pitch | 0.2mm (8mil) |
| Chamfer of Gold Fingers | 20, 30, 45, 60 |
| Solder Mask Bridge | 0.1mm |
| Minimum Trace / Spacing | 3mil/3mil |
| Minimum trace width in inner layers | ≥ 6 mil To prevent ion migration |
| Minimum distance between vias (plated holes) | 12 ml or higher Prevent ion migration |
| Minimum distance between plated holes and trace | ≥ 12 mil To prevent ion migration |
Quality PCB Assembly
Our PCB Assembly Services
Explore our comprehensive PCB assembly services tailored to meet your needs. From quick prototyping to full-scale manufacturing, we ensure precision and quality in every project. Our expert team handles component sourcing and box build assemblies, providing a seamless experience from start to finish.

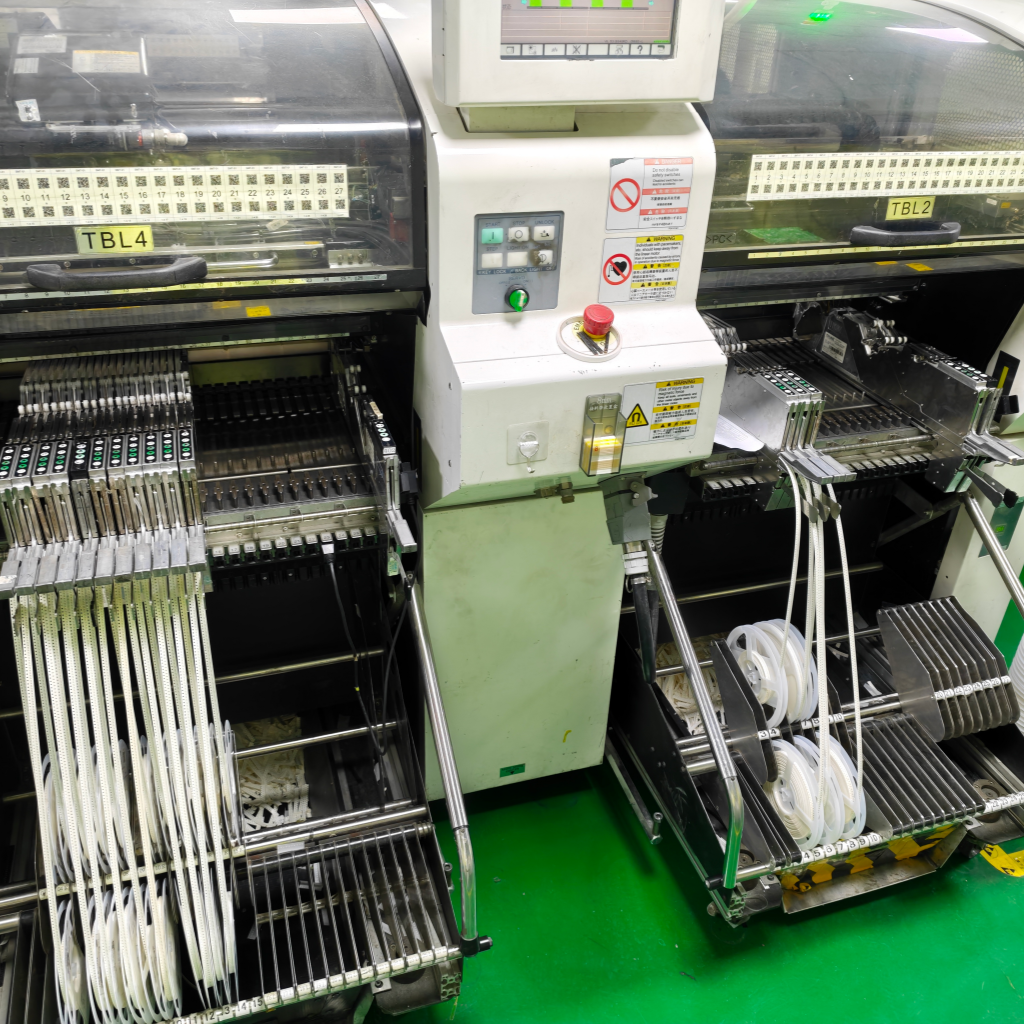

SMT Assembly
We specialize in Surface Mount Technology (SMT) assembly for high-density circuits, ensuring reliability and performance.
Prototyping Services
We offer rapid prototyping services to help you validate designs quickly and efficiently, reducing time to market.
Through-Hole Assembly
Our through-hole assembly process is perfect for components that require a stronger mechanical bond, providing durability.

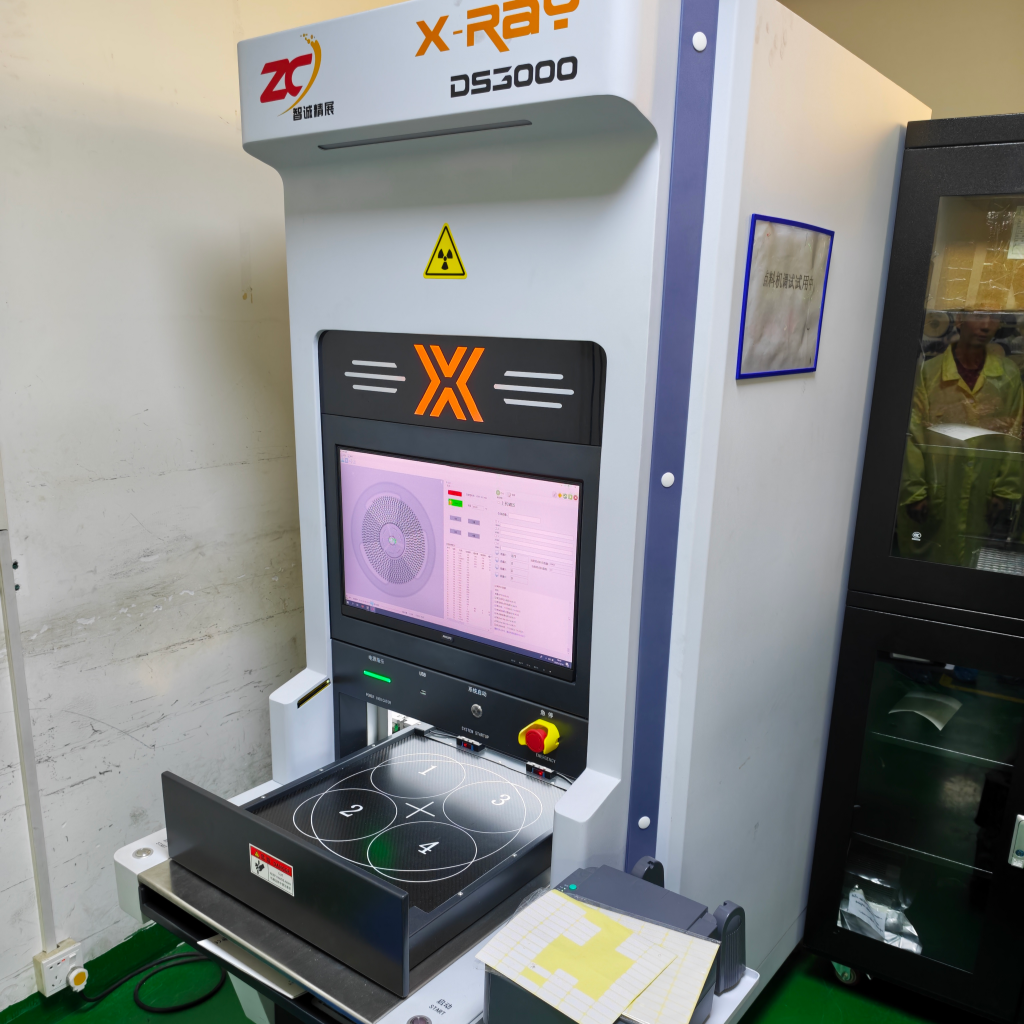

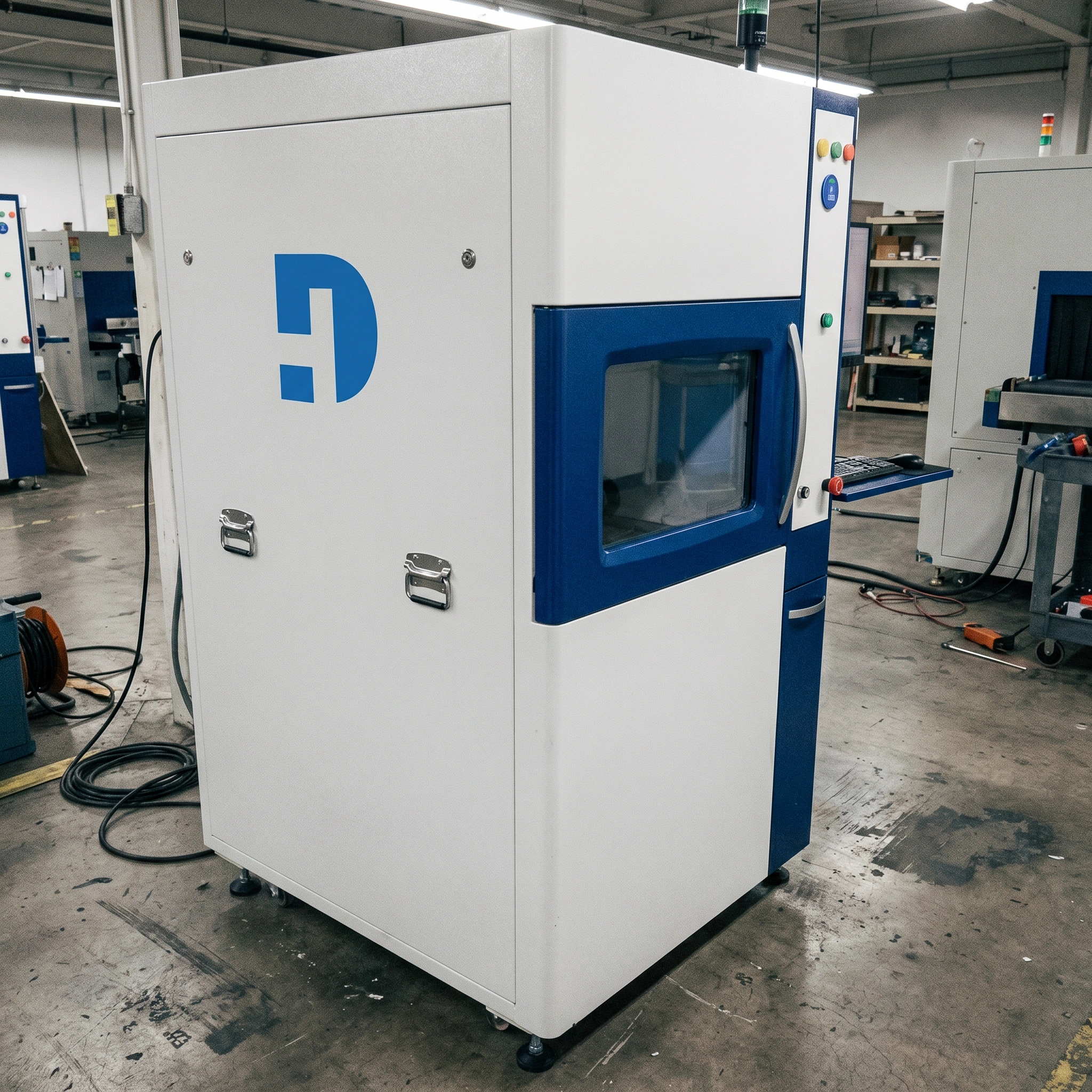

X-Ray Inspection
3D X-Ray inspection for BGA, QFN, and complex assemblies.
DFM Engineering
Comprehensive Design for Manufacturing analysis to optimize yield.
IC Programming
Automated programming services for microcontrollers and memory devices.
